THBP07
应用 ※ 各种便携式电子设备 ※ 用于操作各种紧凑的像手机，通讯设备这种需要高安装密度的电子设备 ※ 用于操作各种MP4 MP3
特点 ※ 侧边类型可以在PCB上侧按 ※ 回流可焊 ※ 用16mm宽的编带包装
Product details
Parameters
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to+85℃ | |
| Electrical performance | Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1min. | |
| Contact resistance | 100mΩ max | |
| Durability | Lifetime | B:D:E=100,000Cycles C=50,000 Cycles |
| Mechanical performance | Operating force | B:180gf C:250gf D:70gf E:130gf |
| Travel | 0.25±0.1mm | |

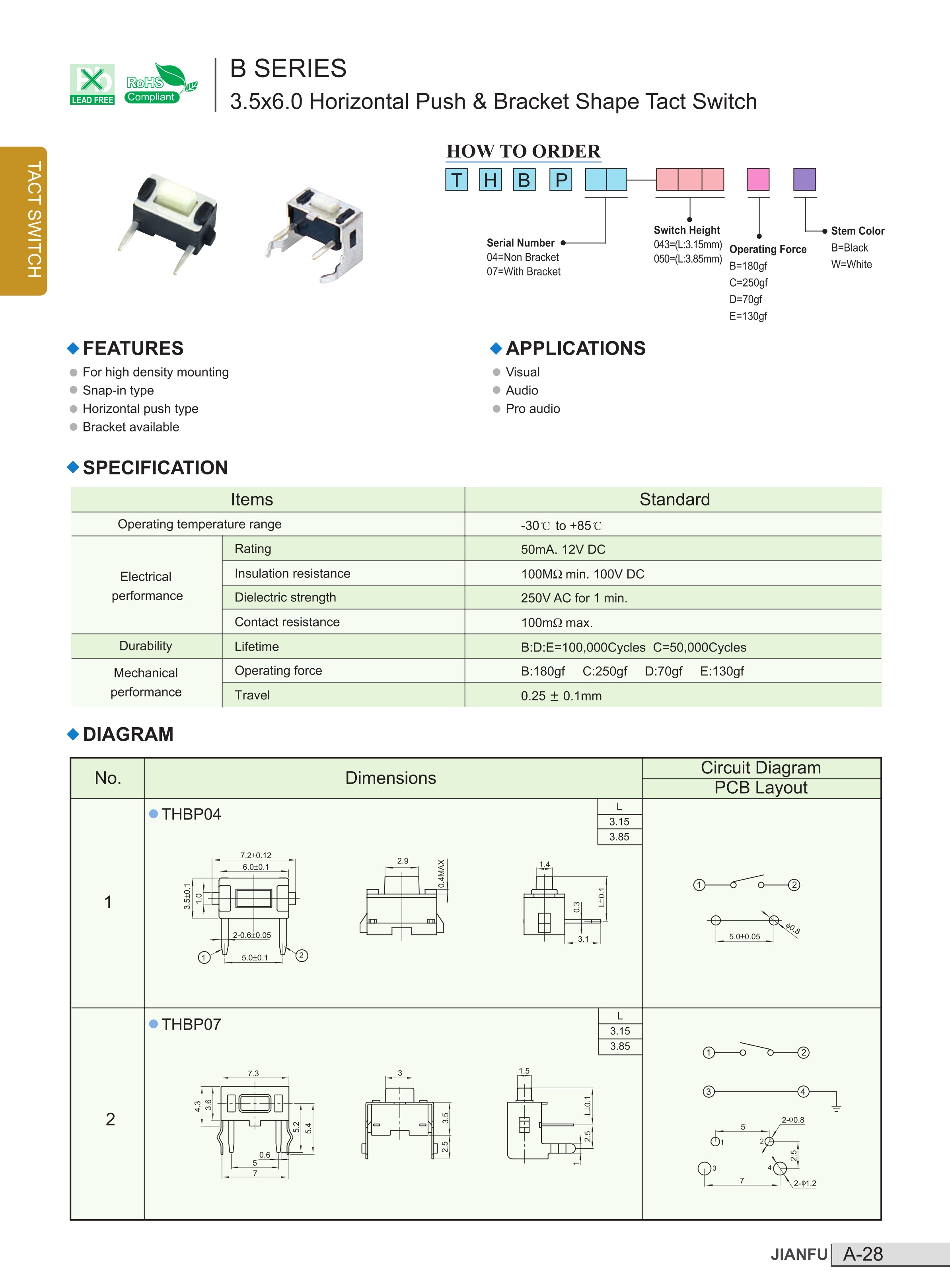

Reference drawing
P.C.B land dimension
Circuit diagram
How to order
