TVBF25
应用 ※ 汽车 ※ 医疗设备 ※ 智能仪表
特点 ※ 橡胶按钮 ※ 有检测类型可选 ※ IP50等级
Product details
Parameters
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to+85℃ | |
| Electrical performance | Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1min. | |
| Contact resistance | 100mΩ max | |
| Durability | Lifetime | A:E:B=100,000Cycles C=50,000 Cycles |
| Mechanical performance | Operating force | A:180gf E:130gf B:180gf C:250gf |
| Travel | 0.30±0.1mm | |

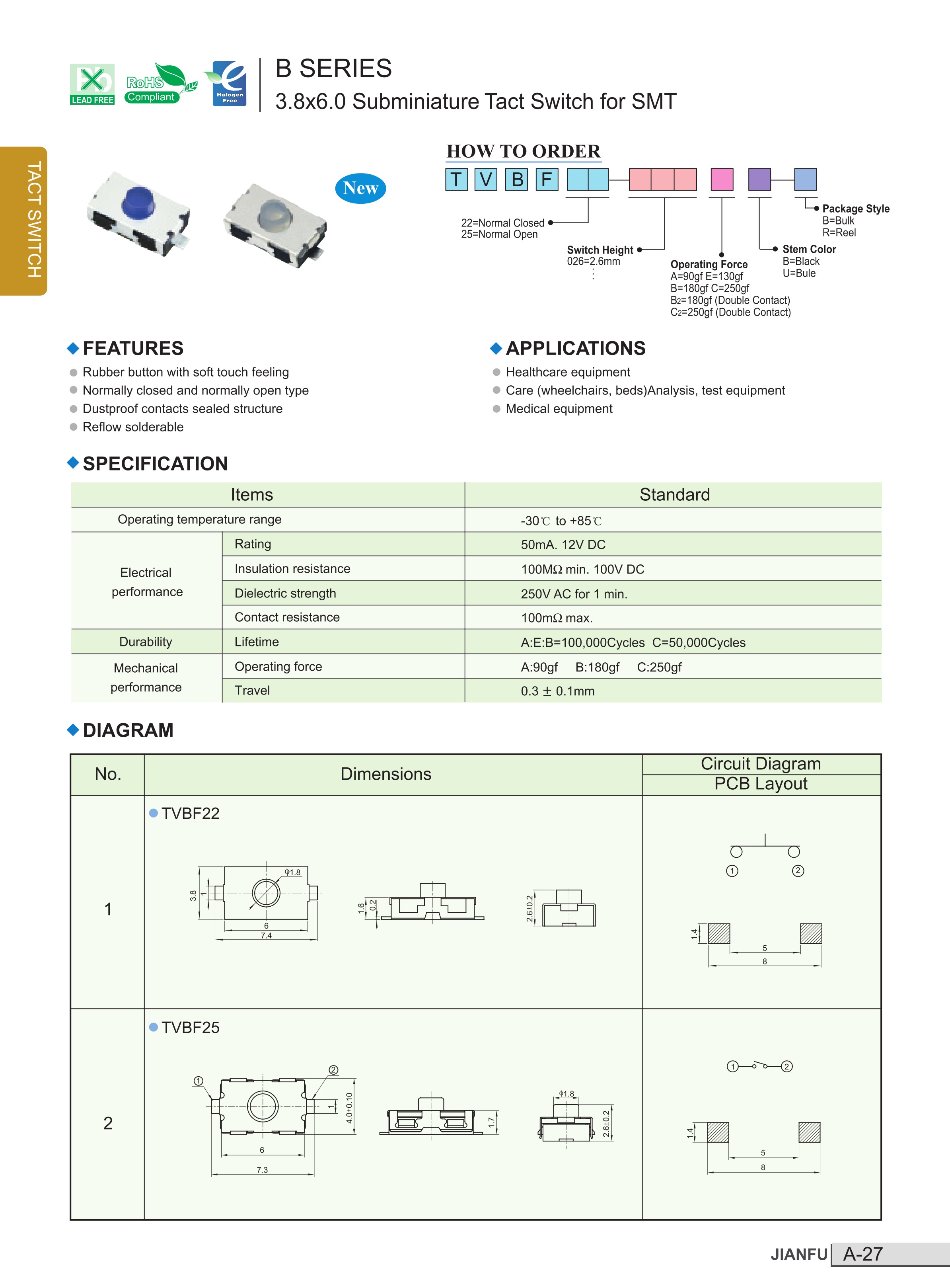

Reference drawing
P.C.B land dimension
Circuit diagram
Structural diagram
How to order
