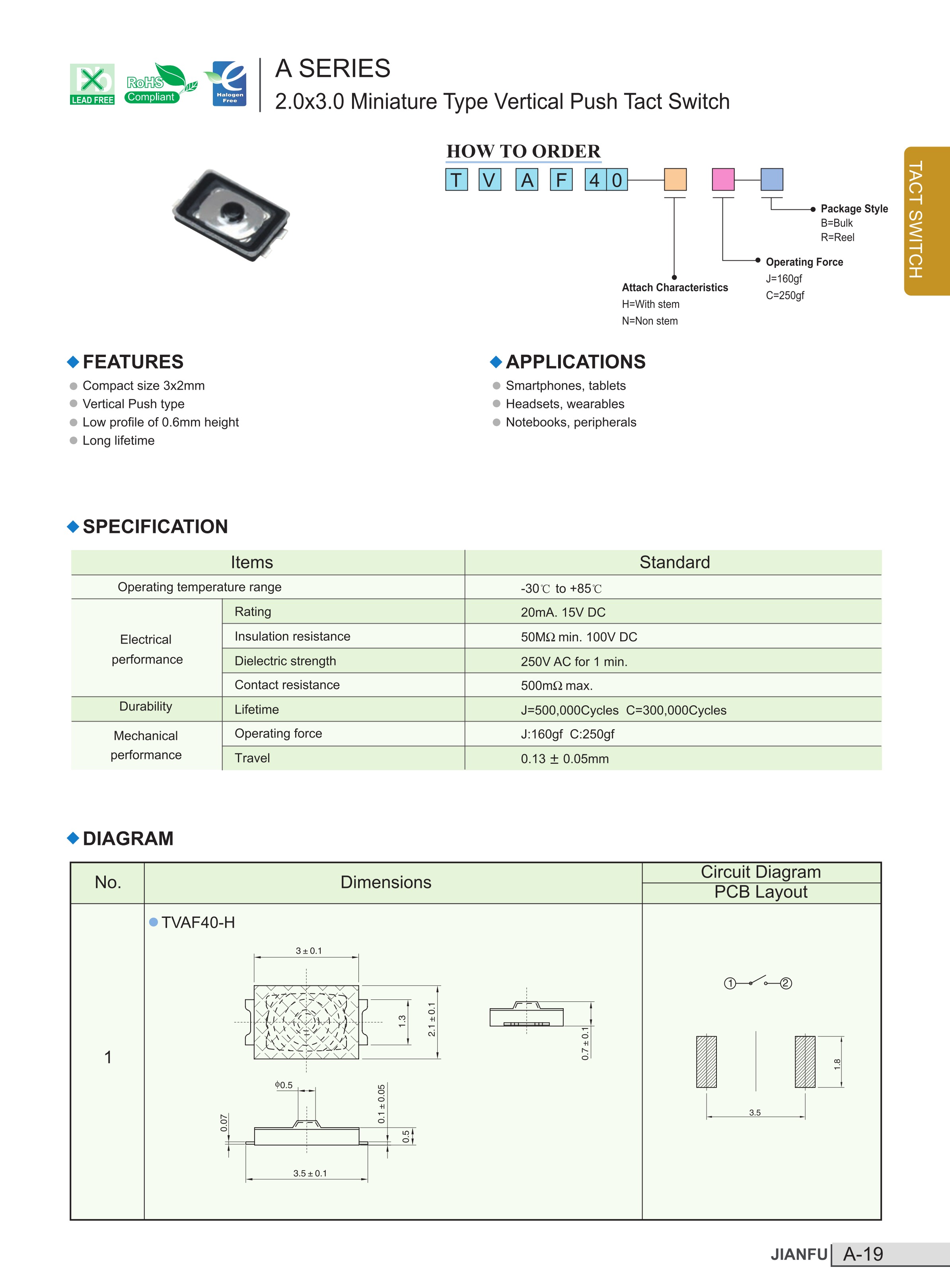

TVAF40-H
应用 ※智能手机、平板电脑 ※耳机、穿戴设备 ※笔记本电脑、外围设备
特点 ※紧凑型3x2mm ※0.6mm高薄型 ※长寿命
产品详情
产品参数Parameters
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to+85℃ | |
| Electrical performance | Rating | 20mA. 15V DC |
| Insulation resistance | 50MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1min. | |
| Contact resistance | 500mΩ max | |
| Durability | Lifetime | J=500,000Cycles C=300,000Cycles |
| Mechanical performance | Operating force | J:160gf C:250gf |
| Travel | 0.15±0.1mm | |
外形图Reference drawing
PCB焊接图P.C.B land dimension
电气图Circuit diagram
订货信息How to order
