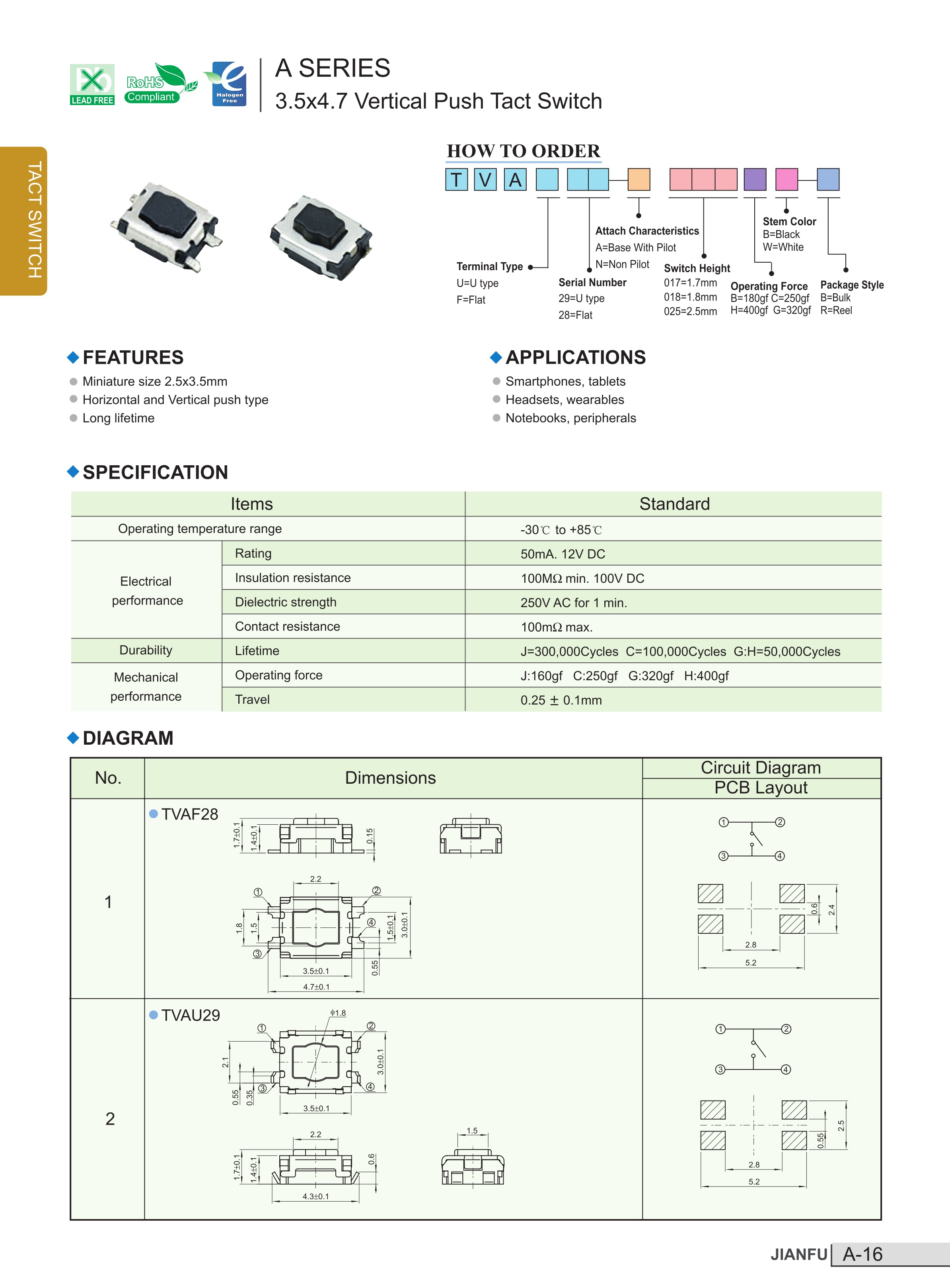

TVAF28
应用 ※智能手机、平板电脑 ※耳机,穿戴设备 ※笔记本电脑、外围设备
特点 ※迷你尺寸2.5x3.5mm ※直按和侧按类型 ※长寿命
产品详情
产品参数Parameters
| Items | Standard | |
|---|---|---|
| Operating temperature range | -30℃ to+85℃ | |
| Electrical performance | Rating | 50mA. 12V DC |
| Insulation resistance | 100MΩ min. 100V DC | |
| Dielectric strength | 250V AC for 1min. | |
| Contact resistance | 100mΩ max | |
| Durability | Lifetime | J=300,000Cycles C=100,000Cycles G:H=50,000Cycles |
| Mechanical performance | Operating force | J:160gf G:320gf C:250gf H:400gf |
| Travel | 0.25±0.1mm | |
外形图Reference drawing
PCB焊接图P.C.B land dimension
电气图Circuit diagram
结构图Structural diagram
订货信息How to order
